Real time communication of He% data from the recovery system to the bench allows a better accuracy of leak rate calculation as if 100% Helium were always used.
Our range comprises both totally integrated recovery systems to optimize the production space and stand-alone units able to handle different stations.
Beside the standard product, HeTECH/Marposs also develops customized versions to meet specific needs such as, for example, systems able to recover helium from machines with a very long cycle time using a significant amount of helium.
As a stand-alone unit, our standard solutions can rely on a consolidated modular design able to shorten the lead time, to ease service installation and operating training and to be upgraded from lower to higher capacity units.
バージョン
HeSAVERLite
Recovery with the possibility of storing helium from 0 to 10 bar with flow rates from 100 Nl/min to 1000 Nl/min.
Possibility to set the required helium percentage via integrated mixer (low and high pressure).
Fully automatic work cycle with parameters controlled in real time.
Remote assistance and supply with PED certifications.

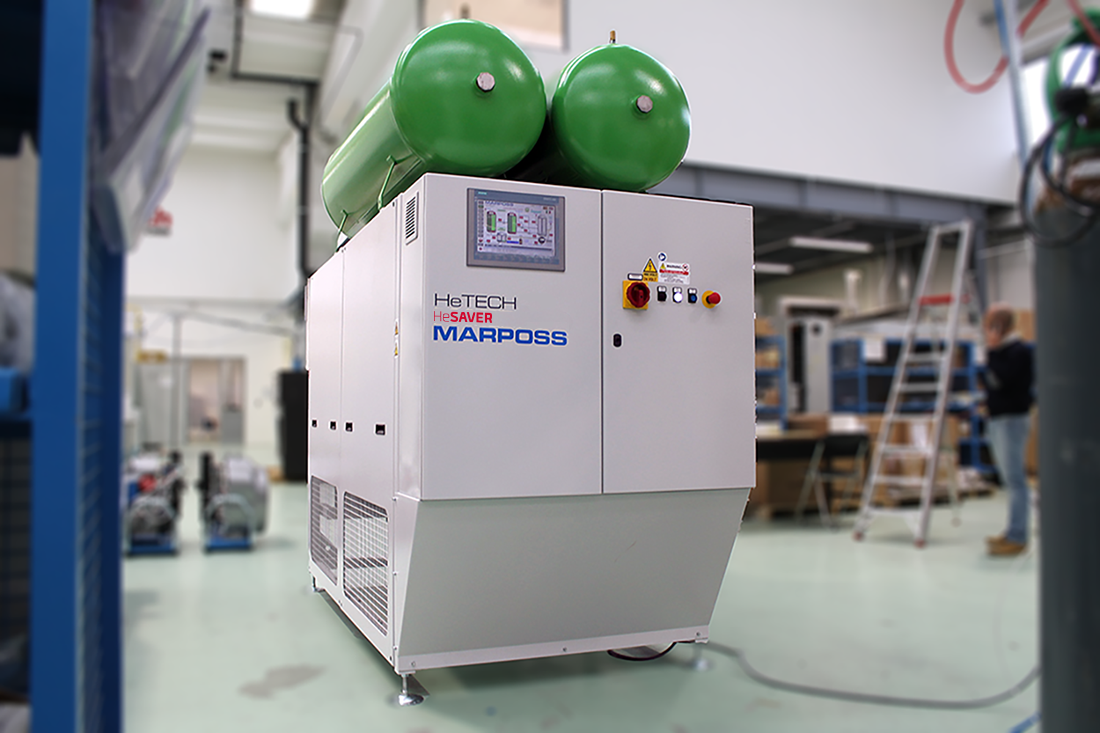

HeSAVER
Recovery with possibility of storage from 0 to 90 bar with flow rates from 100 Nl/min to 1200 Nl/min.
Remote assistance and supply with PED certifications.
HeSAVERPro
Recovery with the possibility of storing helium from 0 to over 400 bar with flow rates from 100 Nl/min to 1200 Nl/min.
All our recovery systems are fully customizable also in term of storage pressure.
Remote assistance and supply with PED certifications.
利点
- Independent or helium leak test machine integrated system
- Recovers up to 95% of used helium
- Totally modular layout
- Dedicated Software and HMI
- Able to handle different test stations
- Modular mechanical frames for easy assembly
- Communication of He% data from helium recovery system to helium leak test machine
- Easy service installation and operating training
- Very short payback time evidence
- Wide range of Capacity (up to 1000 Nl/m) and Operating pressure (over 400 bar)
